Multipurpose & Advertising LED Screen Outdoor Truss Rigging System for Heavy Duty LED Screen Support Admin Edit

Aluminum Multipurpose & Advertising Truss Rigging for LED screen frame, Aluminum goalpost LED screen multipurpose trusses solution, Truss manufacturer

  • Min. Order: 1 Set/Sets
  • Trade Term: EXW
  • Payment Terms: L/C, D/A, T/T, WU
  • Place of Origin: Guangdong,China
  • Means of Transport: Ocean, Air
  • Production Capacity: 10000set / month
  • Packing: Carton / Air bulble

  • Product Description

    Product Attribute

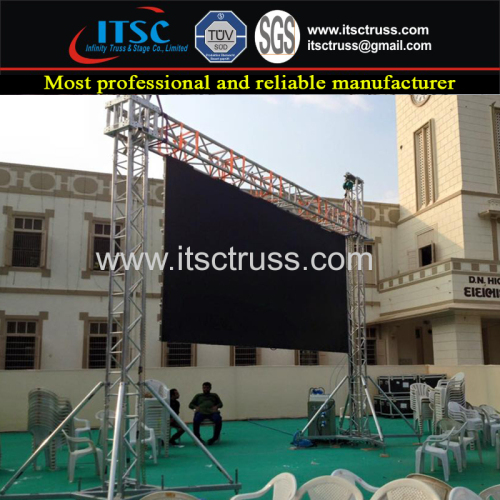

    With the ever-increasing use of outdoor LED or video screens, ITSCtruss has engaged in engineered the perfect solutions for hanging screens in an efficient and safe manner.

    We have developed three standard screen support systems, based on the Towers. All constructions are provided with a complete set of calculations. Variations on the standard structures are available on request.

    Legend:
    Corner2 x 6-way corners
    MastITSC- CS39 , 390 mm X 390 mm square truss with bolt connection
    Base trussITSC- CS39, 390 mm x 390 mm suqare truss
    Stabiliser trussITSC-CS39, 390 mm x390 mm square truss with bolt connection
    Top sectionAluminum or steel
    Feet9 sets ajustable feet, steel,  to ajust the support to even for outdoor events
    Technical specifications:
    Max. overall height8.41m ( other heights optional)
    Max. lifting height6m
    Allowable loading ranging500-5000kg
    Truss sectionsITSC-BS30, 3000 mm x 300 mm square truss
    ConnectionBolt connection
    Windspeed13.8-28. m / s
    System weight550kg
    Transportation volumeApprox. 9 cbm
    ApplicationHanging  Array line speakers, small speakers,ect
    OptionsWinches, other height, hoists, if you like to hang heavier speakkers , other stronger onese avaialble.

    Besides, all the truss sections can be also customized with ITSC-CS39, 390X390mm spigot trusses, or ITSC-CS45, 450X450mm spigot trusses

    Reliable Support:

    The LED screen supports is constructed according to the real occations: The size and weight of LED screen, the hight, the wind force, ect. And all ITSCtruss screen supports comply with the applicable regulations and standards.

    Based on Standard Truss System:

    LED screen supports is consisted of the ITSCtruss standards of trusses and towers. So it is no need for you to buy extral trusses segments and accessories. You can just use your equipments in stock to construct the supports.

    1. Heavy duty capacity for outdoor led screens or videos,2000-3500kg

    2. Quick to install and desmantle

    3. Durable for outdoor events

    It takes just 1 hour to set up the whole system

    Below is the size required by our client from Sri Lanka.

     All with 390x390mm spigot trusses, with electronic hoists and all accessories, it is US7950; all with 450x450mm spigot truss, USD8340; Shipping cost variers according to different countries.

    Shipping cost and estimated date of arrival varies according to different countries and ports in different seasons. So below we list down some shipping cost so that you can refer to it.

    CountryEestimated date of ArrivalCost
    Trinida and Tobago30-45daysUSD$1100-USD$1300
    Delivery Date: within 3 working days Brand Name: ITSCtruss
    Materials: Aluminum 6061/ 6082 Colour: Silver
    Truss sections: 390x390mm pin truss Max. Windspeed: 13.8-28m/s
    Main tubes: 50x3mm Bracing: 30x2mm
    OEM/ODM: Acceptable Certificates: SGS
    Market: Global
  • Min. Order: 1 Set/Sets
  • Trade Term: EXW
  • Payment Terms: L/C, D/A, T/T, WU
  • Place of Origin: Guangdong,China
  • Means of Transport: Ocean, Air
  • Production Capacity: 10000set / month
  • Packing: Carton / Air bulble
  • Delivery Date: within 3 working days
  • Brand Name: ITSCtruss
  • Materials: Aluminum 6061/ 6082
  • Colour: Silver
  • Truss sections: 390x390mm pin truss
  • Max. Windspeed: 13.8-28m/s
  • Main tubes: 50x3mm
  • Bracing: 30x2mm
  • OEM/ODM: Acceptable
  • Certificates: SGS
  • Market: Global
  • Category: Multi-purpose Trussing
