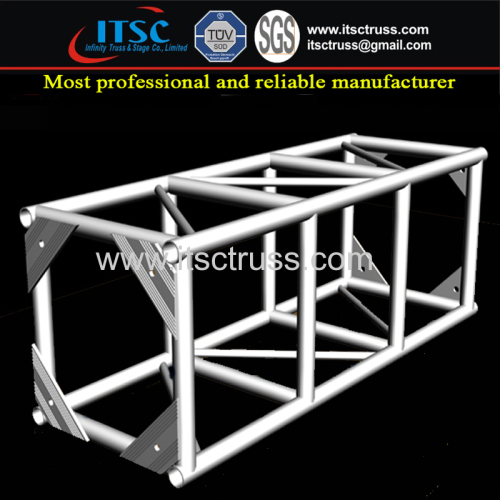

520X520x1000mm Square truss with Bolt Connection Admin Edit

Aluminum Stage Trussing Quatro Trussing 520x520mm is castoring for the medium duty Roofing Trussing System in Concerts, Wedding parties,ect.

  • Min. Order: 1 Meter
  • Trade Term: FOB,EXW
  • Payment Terms: Paypal, L/C, D/P, T/T, WU, Money Gram
  • Place of Origin: Guangdong, China (Mainland)
  • Means of Transport: Ocean, Air, Land
  • Production Capacity: 10000/month
  • Packing: Carton/ Air Bubble

  • Product Description

    Product Attribute

    ITSC-BS52 is constructed of main tube 50x30mm, sub-main tube 50x2m and bracing 25x2mm. It is with bolt or screwn and nuts as connection. It can be exnted to 18m or 60ft with 900kg capacity. Compared with the spigot trussing, it needs more time to install but its price is competitive with the same capacity.

    Dimension520x520mm Quatro

    Main tube

    Φ50x3mm

    Sub-main   tube

    Φ50x2mm

    Bracing

    Φ25x2mm

    Span(m)12m14m16m18m20m
    Symmetrical loading(kg)1150110010501000950
    Deflection(mm)688198116124

    All the trusses are tested before deliveried.

    (m)

    (ft)

    0.5m

    1.6ft

    1m

    3.2ft

    1.5m

    5ft

    2m

    6.5ft

    2.5m

    8.2ft

    3m

    10ft

    High quality truses weilding manship.

    The hot sale truses optoins available:


    A quick look into order:

    A detailed look into order:

    Negotiate   truss

    Specification

    Quantity

    Price

    Packing

    Delivery   Time

    Terms of   Payment

    Claim for   Compensation

    Arbitration

    Sign a   contract

    Order   goods and stamp

    Transfer   payment

    Cash, T/T,   Western union, Money gram, L/C, ect

    Prepare   production

    PD study   the specification and start to arrange the production,

    Check and   Testing

    QC   checking and testing the quality

    Packing

    Generally   pack with bubble air or carton according to negotiation

    Prepare   documents

    Calculate   the weight and volume for clearance documents: packing list,   invoice,   B/L, ect. And other special documents for clearance in different     countries.

    Shipment

    Arrange   container and load and ready to delivery. Usually takes   12-45days   depending on different areas.

    Insurance

    Buy the   insurance according to the goods price

    Bill of   Lading

    Will   deliver the B/L to clients by door to door service

    A quick look into production:

    A detailed look into production:

    Step 1

    Material   Ready

    Step 2

    Material   Cutting

    Step 3

    Board   Cutting

    Step 4

    Punching

    Step 5

    Milling

    Step 6

    Welding

    Step7

    Checking

    Step 8

    Testing

    Step 9

    Packing

    When come to setup a truss structure, people would be concious with the span and capacity, and below is some reference:

    Span

    Beams

    Pillars

    Capacity

    W6xD6xH3m

    ITSC-CS20

    ITSC-CS20

    Approx   1600kg

    W10xD10xH7m

    ITSC-CS29

    ITSC-CS29

    Approx.3000kg

    W12m x D9m   x H8m

    ITSC-CS39

     ITSC-CS39

    Approx.   4000kg

    W18m x   D12m x H10m

    ITSC-CS52

    ITSC-CS39

    Approx.7000kg

    W24m x   D18m x H12m

    ITSC-CS5276

    ITSC-CS52

    Approx.7000kg

    W36m x   D30m x H12m

    ITSC-CS60100

    ITSC-CS52

    Approx.15000kg

    Alumimnum Stage Lighting Truss Rigging

    Plan to visi ITSC truss group? We will service you soul and heart during your whole visit, picking up  from airport,taking good care of your luggage,preparing all the items you are interested,or even be your translator if you need our heolp for free!




    Delivery Date: 3 working days Brand Name: ITSCtruss
    Materials: Aluminum 6061/ 6082 Colour: Silver
    Connection: Bolt OEM/ODM: Acceptable
    Place of origin: Guangzhou, China Certificates: TUV/SGS
    MOQ: Any quantity is acceptable Characteristics: Durable
    Length: 0.5m / 1m / 2m/ 3m Market: Global
  • Min. Order: 1 Meter
  • Trade Term: FOB,EXW
  • Payment Terms: Paypal, L/C, D/P, T/T, WU, Money Gram
  • Place of Origin: Guangdong, China (Mainland)
  • Means of Transport: Ocean, Air, Land
  • Production Capacity: 10000/month
  • Packing: Carton/ Air Bubble
  • Delivery Date: 3 working days
  • Brand Name: ITSCtruss
  • Materials: Aluminum 6061/ 6082
  • Colour: Silver
  • Connection: Bolt
  • OEM/ODM: Acceptable
  • Place of origin: Guangzhou, China
  • Certificates: TUV/SGS
  • MOQ: Any quantity is acceptable
  • Characteristics: Durable
  • Length: 0.5m / 1m / 2m/ 3m
  • Market: Global
