400x400mm Square truss with spigoted connection Admin Edit

1. Medium duty lighting truss section 2. 4 sides of bracing and good weilding line 3.High quality but much cheaper price than the Universal truss

  • Min. Order: 1 Meter
  • Trade Term: FOB,CIF,EXW
  • Payment Terms: Paypal, L/C, D/P, T/T, WU, Money Gram
  • Place of Origin: Guangdong, China (Mainland)
  • Means of Transport: Ocean, Air, Land
  • Production Capacity: 10000/month
  • Packing: Carton/ Air Bubble

  • Product Description

    Product Attribute

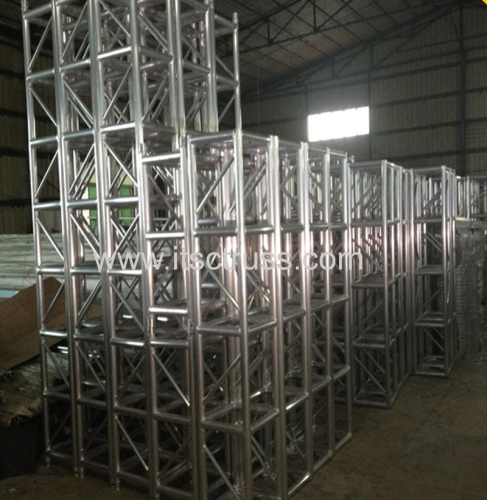

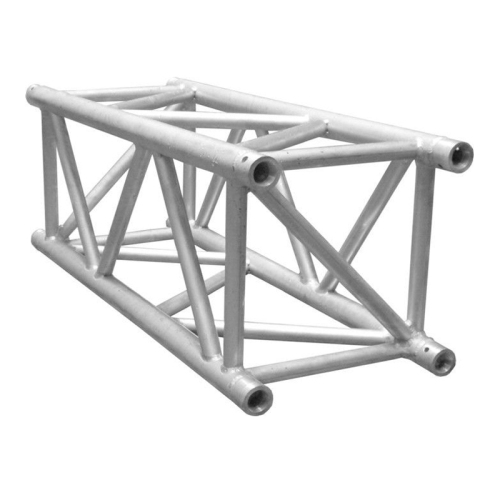

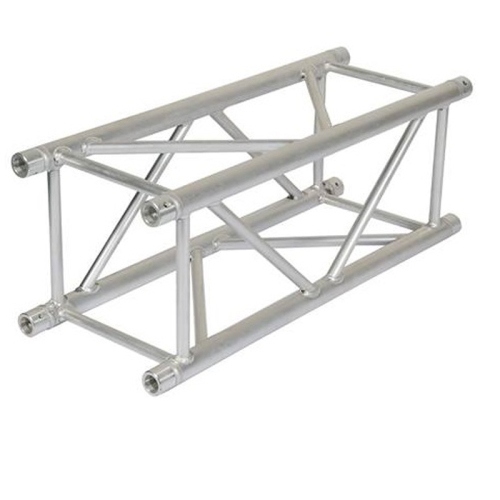

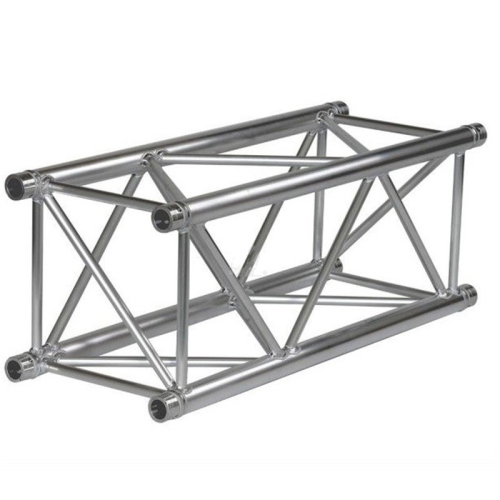

    400x400mm Square truss is construced with main tube 50x3mm, deputy tube 50x2mm and bracing 25x2mm. It is 4-sided webbing and absorbing vertical loads. It  is usually applied as pillars in different trussing roof system, which is 30ft high or above.It offers a high load capacity. It is possible to do a powder coating or a high gloss/hand polished design within the delivery periode. It is adapted for Event Technology,Trade Fair Construction, Theatre Construction and Stage Design.



    Item400x400mm square lighting Trussing
    Part No.
    ITSC-CS40
    Material6061-T6/ 6082-T6
    Main tube50x3mm
    Bracing25x2mm

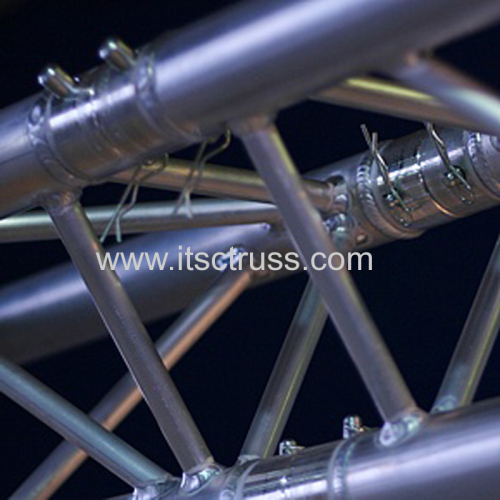

    ConnectionStrong pin connector
    Length1m / 2m / 3m ( Other length customized )
    ColorSilver
    Price
    Reasonable/Wholesale price with discount
    PackingCatton/airbubble/(optionable)
    UsagesExhibition building, concerts, Event, LED display goalpost, roof system, Line array speaker hanging

    Aluminum quare pin truss 400X400M
    Span2m4m6m8m10m12m14m16m18m
    UDL(kg/m)1152
    732321177111755439.529
    Deflection(mm)0.20.61.42.43.65.58.08.69.5
    CPL(kg)761.7681.7615.6561.3515.7445.7367.3306.5257.4
    Deflection(mm)0.20.60.71.52.74.15.47.08.3

    1. Good weilding line and 4 sides of bracing to support

    2. Flexible and easy for setup

    3. Competitive price and also discount available for wholesale

    4. all aluminum truss is envirement-friendly and can be reused and durable

    Remarks; Other sizes and requirements can be customized.

    1. Do check and maitain trusses on a regular basis

    2. Do throw away the damaged trusses

    3. Do check the loading capacity when hanging stuff

    4. Do attach loads in node points

    5. Don't mix trusses from different suppliers

    6. Don't exceeed the maximum loading of single span

    7. Don't attach loads to the trusses diagonals

    It takes within 1 week to delivery


    Delivery Date: 3 working days Brand Name: ITSCtruss
    Materials: Aluminum 6061/ 6082 Certificates: TUV/SGS
    Company type: Manufacturer OEM/ODM: Acceptable
    Main products: Aluminum trussing, Aluminum Staging, Arena Seating, Barricades Application: Entertainment events, Wedding Parties, Exhibits booths, Trade Shows, Show Room,Display, Speaker Supports
    Our dreams: Strive to be one of the leading manufacturers of aluminum trusses rigging and mobile stages performance equipments Our Beliefs: Service our customer to achieve their goals, value quality and innovation, be trustworthy and responsible
    Cost: Factory price only Warranty: 2 years
