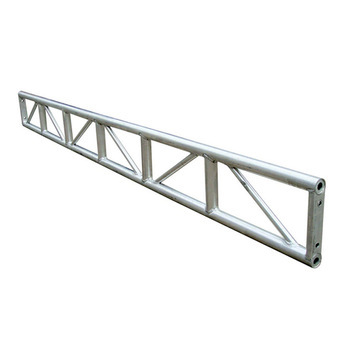

290mm i beam truss with spigoted connection Admin Edit

Aluminum i beam Truss is specially applied in Truss Roof System, Studio, indoor events, Mobile DJ truss ect. It can be curved, circular and straight.

  • Min. Order: 1 Meter
  • Trade Term: FOB,CIF,EXW
  • Payment Terms: L/C, T/T, WU, Money Gram
  • Place of Origin: Guangdong, China (Mainland)
  • Means of Transport: Ocean, Land
  • Production Capacity: 100sets/month
  • Packing: Carton / Air bulble

  • Product Description

    Product Attribute

    Brief introduction:

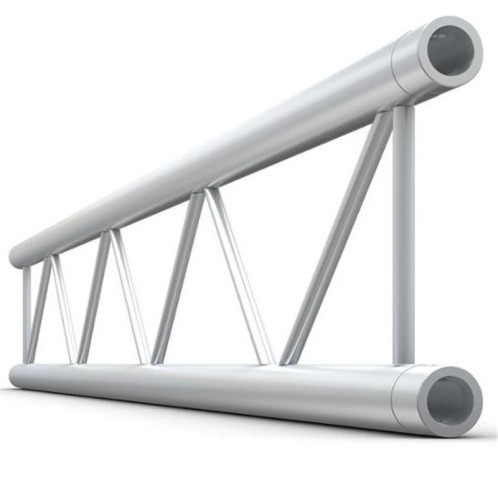

    290mm i beam truss is one of the 290mm series. It consists main tube 50x2mm, and deputy tbue 25x2mm, diagonal is 20x2mm. It can applied for both small and large events application. With the Conical Coupler or Spigot Connection, it is quick and easy to asssemble in Aluminum Truss and Stages System .

    Drawing :

    Specification:

    Dimension50x290mm Duo

    Main tube

    Φ50x2mm

    Deputy  tube

    Φ25x2mm

    Diagonals

    Φ20x2mm

    Common lengths and weight:

    Truss type

    0.5 m

    1 m

    1.5 m

    2 m

    2.5 m

    3 m

    4 m

    5 m

    Ladder

    1.5 kg

    3.35 kg

    5 kg

    6 kg

    7.5 kg

    9 kg

    12 kg

    15 kg

    Triangular

    2.25 kg

    4.5 kg

    6.9 kg

    9 kg

    11.25 kg

    13.5 kg

    18 kg

    22.5 kg

    Square

    2.95 kg

    5.9 kg

    8.9 kg

    11.8 kg

    14.75 kg

    17.7 kg

    23.6 kg

    29.5 kg

    Loading capacity:

    Span(m)2m3m4m5m6m7m8m9m10m
    UDL( kg/m) 567.0377.0250.5159.2109.779.860.447.437.6
    CPL(kg) 708.0586.2501.0398.1329.0279.2241.547.4187.8

    Functions:

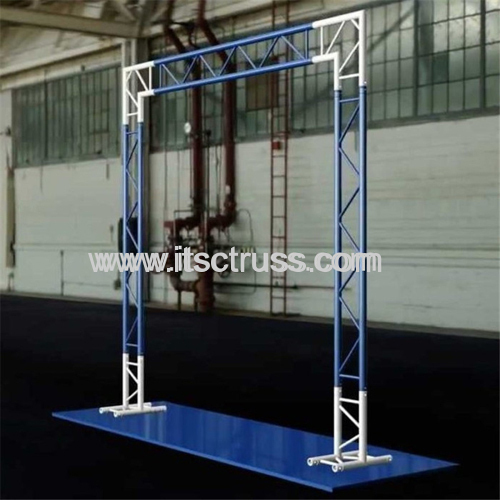

    This Mini Beam Truss can be constructed into Mobile stands in Gymnasium with colourful treatments.

    It can be also applied in DJ Truss Stand for Parcans.

    Delivery Date: 5 working days Brand Name: ITSCtruss
    Materials: Aluminum alloy 6082/6061 Certificates: TUV/SGS Aproved
    Company type: manufacturer Main products: Aluminum truss, Rund truss, lighting truss, aluminum stages, arena stands, aluminum truss tent,Aluminum parabolic hut
    Application: Rental business,concerts events, wedding parties, exhibition display, advertising, indoor and outdoor decoration events Options: flat roof truss,gable roof truss, dome roof truss, arc roof truss, mobile stages,arena stands,goalposts, soundwings
    Our dream: Strive to be one of the leading manufacturers of aluminum trusses rigging and mobile stages performance equipments Cost: factory price only, no dealer
    Our beliefs: Service our customer to achieve their goals, value quality and innovation, be trustworthy and responsible Marketing: Global
